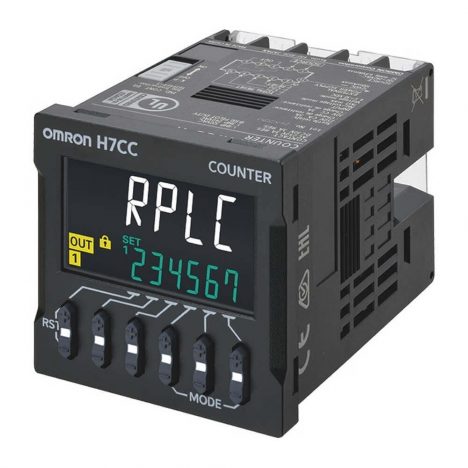

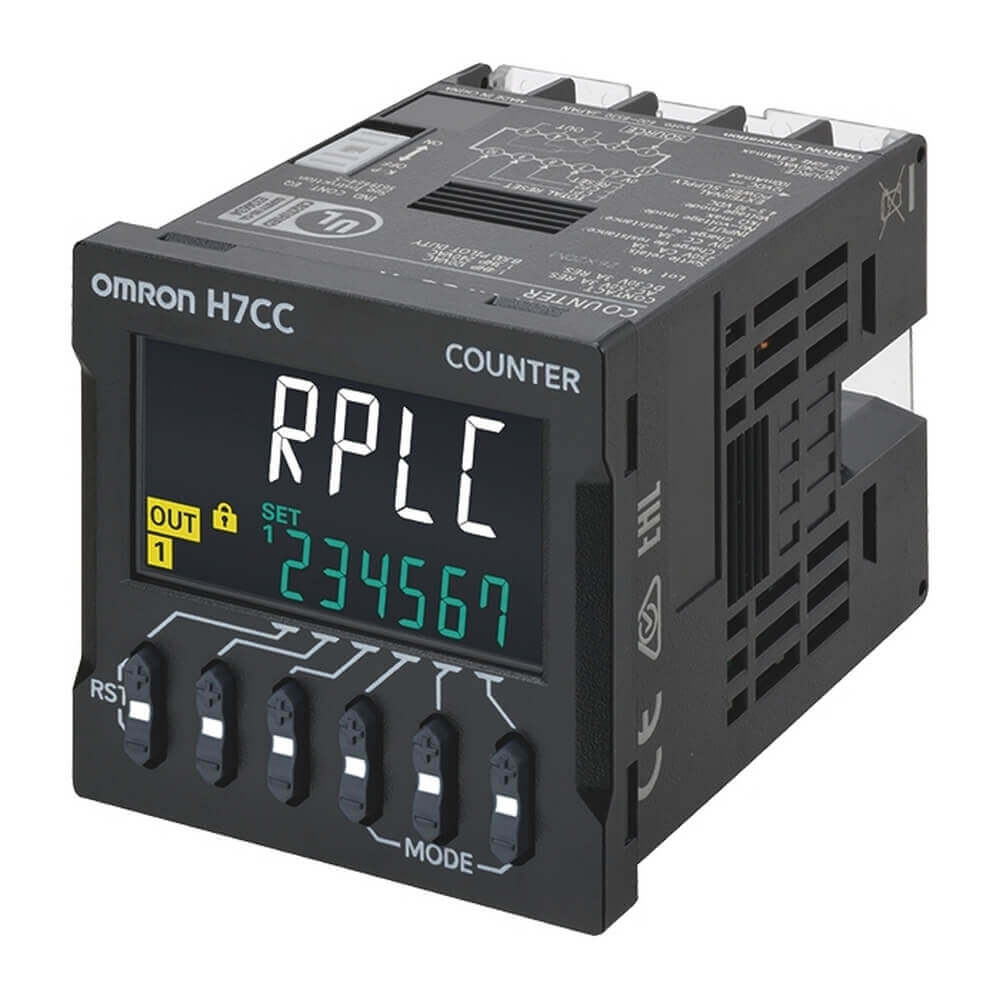

H7CC Preset Counter / Tachometer
Description: Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 2-stage, Configuration: 1-stage preset counter + 2-stage preset counter + Total and preset counter + Batch counter + Dual counter + Twin counter + Tachometer, Contact output (SPDT) + (SPST), Dimensions 48*48*78mm, Supply voltage 100-240VAC at 50/60Hz.
Brand: OMRON
- SKU: H7CC-AWD
Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 2-stage, Configuration: 1-stage preset counter + 2-stage preset counter + Total and preset counter + Batch counter + Dual counter + Twin counter + Tachometer, Contact output (SPDT) + (SPST), Dimensions 48*48*78mm, Supply voltage 24VAC/12-48 VDC at 50/60Hz.
- SKU: H7CC-AUD
Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 2-stage, Configuration: 1-stage preset counter + 2-stage preset counter + Total and preset counter + Batch counter + Dual counter + Twin counter + Tachometer, Contact output (SPDT) + Transistor Output (SPST), Dimensions 48*48*78mm, Supply voltage 24VAC/12-48 VDC at 50/60Hz.
- SKU: H7CC-AU
Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 2-stage, Configuration: 1-stage preset counter + 2-stage preset counter + Total and preset counter + Batch counter + Dual counter + Twin counter + Tachometer, Contact output (SPDT) + Transistor Output (SPST), Dimensions 48*48*78mm, Supply voltage 100-240VAC at 50/60Hz.
- SKU: H7CC-A
Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 1-stage, Configuration: 1-stage preset counter + Total and preset counter, Contact output (SPDT) + Transistor Output (SPST), Dimensions 48*48*78mm, Supply voltage 100-240VAC at 50/60Hz.
- SKU: H7CC-AD
Preset Counter/Tachometer, Screw terminals, 6 digits, Settings: 1-stage, Configuration: 1-stage preset counter + Total and preset counter, Contact output (SPDT) + Transistor Output (SPST), Dimensions 48*48*78mm, Supply voltage 24VAC/12-48VDC at 50/60Hz.
- SKU: H7CC-A11
Preset Counter/Tachometer, Plug-in Terminal (11-pin socket), 6 digits, Settings: 1-stage, Configuration: 1-stage preset counter + Total and preset counter, Contact output (SPDT), Dimensions 48*48* 63.7mm, Supply voltage 100-240VAC at 50/60Hz.
- SKU: H7CC-A11D
Preset Counter/Tachometer, Plug-in Terminal (11-pin socket), 6 digits, Settings: 1-stage, Configuration: 1-stage preset counter + Total and preset counter, Contact output (SPDT), Dimensions 48*48* 63.7mm, Supply voltage 24VAC/12-48VDC at 50/60Hz.
